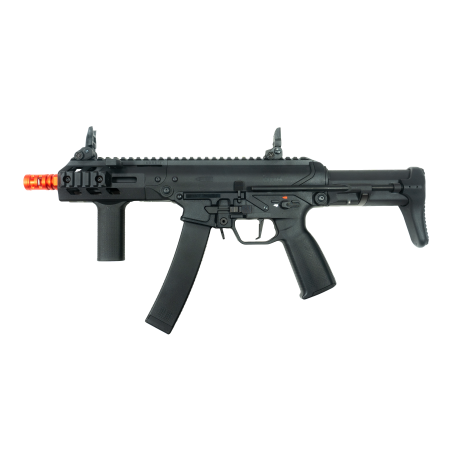

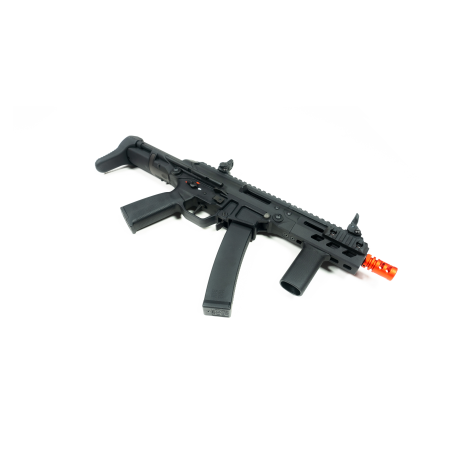

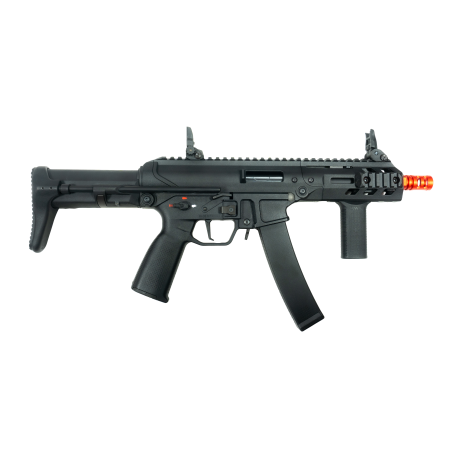

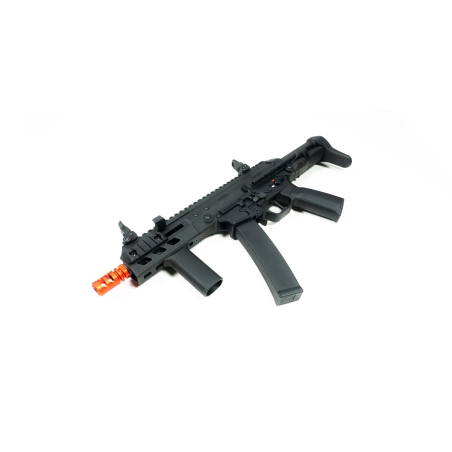

The all-new KWA KO:AVA-4 is the lightwight polymer version of the incredibly popular QRF MOD 1. Taking same magazines as the QRF, this compact AEG is built from high density polymer, with aluminum reinforcement in key areas.
Internally, the new KO line shares the same 2.5+ adjustable FPS gearbox as the TK.45c, Ronin T6, QRF Mod Series, and Ronin 47. This is compatible with the Gate TITAN electronic trigger unit, allowing for one to build anultra-responsive and lightweight polymer AEG coupled with legendary KWA performance.
|
Product Features
- High density polymer body
- K.O.R.E MLOK-compatible rail
- Ambidextrous fire selector
- Ambidextrous charging handle
- Enlarged trigger guard
- Integrated grip with reduced handle angle
- Unique 2-port muzzle brake
- Front & rear PTS® Enhanced Polymer flip-up sights
- Compact 2-position PDW Stock
- Front and rear QD sling swivel sockets
- AEG 2.5+ gearbox
- Improved high-torque motor
- Upgraded high-speed gear set
- Compatible with Gate TITAN ETU's
- Variable Performance System (adjustable FPS)
- Rotary hop up chamber
- Includes KWA slim style vertical foregrip
- 80 round magazine (compatible with QRF MOD 1)
|
Specifications:
- Length Retracted: 12.25"
- Length Extended: 27"
- Inner Barrel Length: 7.25"
- Inner Barrel Diameter: 6.05mm
- Magazine Capacity: 80 Rounds
- Weight (with mag): 5 lbs
- Rate of Fire: 21 w/11.1v LiPo
- Velocity: 330 - 380 FPS
- Energy Output (with 0.20g BB): 1.4 Joules
- Power Source: NiMh, LiPo, or Li-Fe
- T-Plug connector
|
Players and professionals looking to get the ultimate performance and durability out of their KWA should consider the addition of one of our upgrade services:
|
Tier 1 Standard Upgrade - $525
- Includes: AOE correction, reshimming, clean and relube w/Superlube, compression testing and full function check
- Lambda One Stainless Steel 6.01 Inner Barrel
- Trusight Tru-Hop Gen. 3 Hop-Up Bucking
- Retro Arms CNC Ver. 2 Air Nozzle
- KWA AEG 2.5 / 3.0 Tappet Plate (Gen. 2)
- Tappet Spring Spacer
- Lonex Double O-Ring Aluminum Cylinder Head
- 70D AirPad (Gen. 2)
- Lonex POM Piston Head
- 70D Viton O-Rings
- CYMA FMR Piston
- SHS 13:1 Gearset
- ASG Infinity U-22000 Motor
- MAXX CNC Tuneable Flat Trigger, E-Type (black)
- Gate TITAN II Ver. 2 Rear-Wired ETU (Expert)
- Deans plug
- 1 Year Warranty
- Excellent semi-auto response with above average full auto ROF compared to stock
|
Tier 1 Ultimate Upgrade - $599
- Includes: AOE correction, reshimming, clean and relube w/Superlube, compression testing and full function check
- Lambda One Stainless Steel 6.01 Inner Barrel
- Trusight Tru-Hop Gen. 3 Hop-Up Bucking
- Retro Arms CNC Ver. 2 Air Nozzle
- KWA AEG 2.5 / 3.0 Tappet Plate (Gen. 2)
- Tappet Spring Spacer
- Lonex Double O-Ring Aluminum Cylinder Head
- 70D AirPad (Gen. 2)
- Lonex POM Piston Head
- 70D Viton O-Rings
- Angel Custom KRATOS Piston
- SHS 13:1 Gearset
- Warhead 30K brushless motor
- MAXX CNC Tuneable Flat Trigger, E-Type (black)
- Gate TITAN II Ver. 2 Rear-Wired ETU (Expert)
- Deans plug
- 1 Year Warranty
- Excellent semi-auto response with peak full auto ROF
- Offers the absolute best efficiency and lowest amp draw
|
Gate TITAN II Features
- Advanced Electronic Trigger Unit
- Cycle detection and precise cycle control
- Adjustable trigger sensitivity
- Supports a wide range of trigger pull
- adjustments (from hair-trigger to long pull)
- Pre-cocking boost for faster trigger response
- Active Brake
- Programmable burst and binary trigger mode
- Series safety limit
- Optional magazine mode w/capacity programming
- Optional simulated reload delay
- Optional low ammo warning
- ROF control
- Trigger equalizer
- User statistics and telemetry
- Customizable profiles and settings storage
- Low battery LiPo protection
- Audible warning notifications
- Gearbox diagnostics and error reporting
- Low battery protection
- Digital smart fuse
- Operating voltage 7.4v - 17v
- Additional accessory ports
- Easy firmware updates via the GATE Control Station app
- Wireless Bluetooth programming
|
*Parts substitutions may be made based on availability. If a substitution is made, parts of equal or greater quality will be used in your build. All parts are generally held in stock.
